Expanded Highlights
High-Definition Sound Output
4Ω 3W speaker delivers ≥110dB volume, ensuring clear and immersive sound quality.

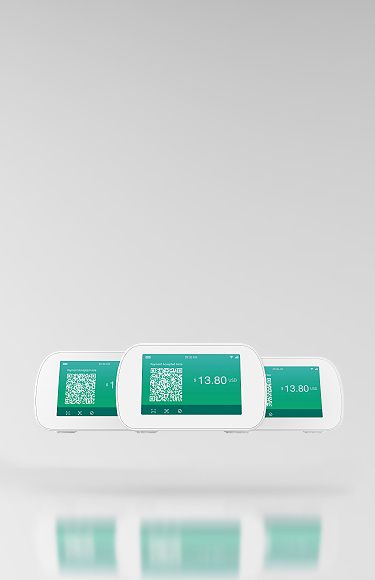

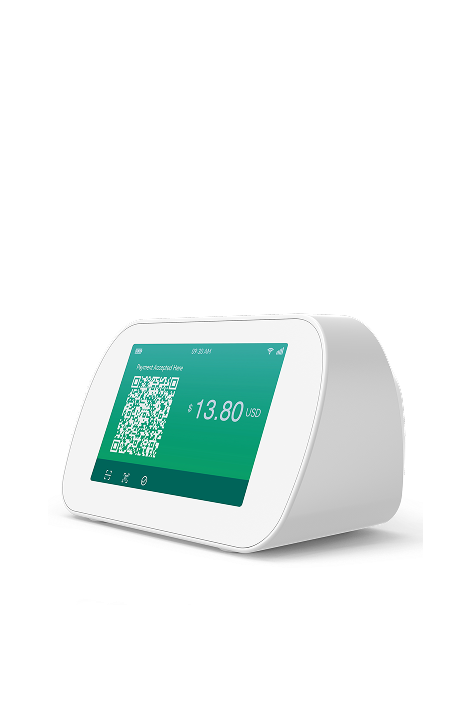

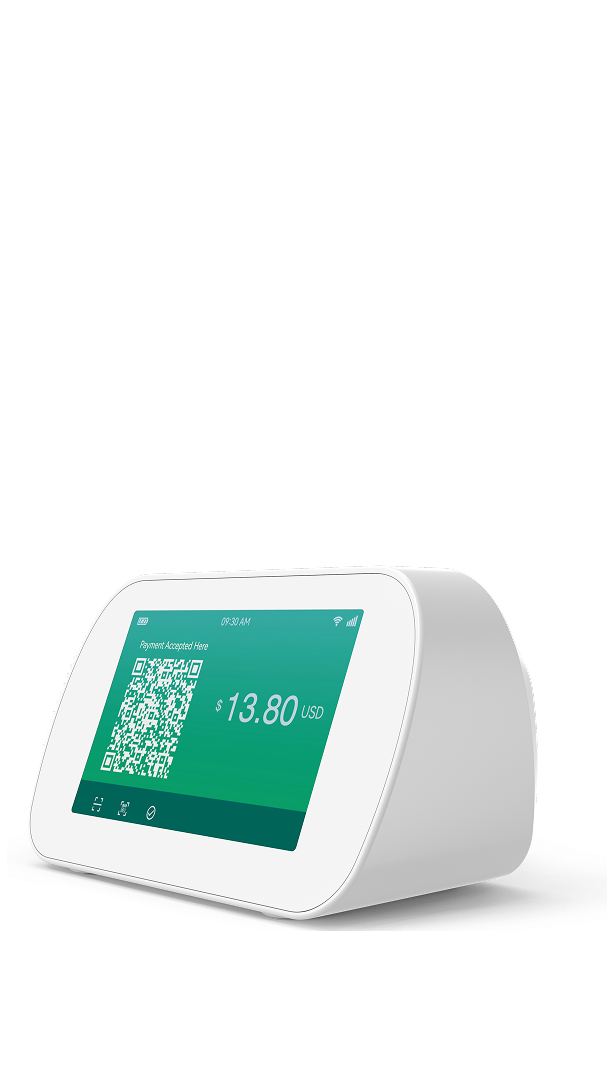

Optional Interactive Display
and Dynamic QR Code
Optional display enhances user interaction with a clear interface and supports dynamic QR codes for secure and efficient transactions.
Extended Usage Time
2600mAh battery supports long hours of uninterrupted use, reducing the need for frequent charging.
Enhanced Anti-Drop Protection
Enhanced durability for withstanding drops up to 1 meter.
Technical Specifications
Processor
ARM Cortex R5, 614 MHz
Memory
8M RAM, 8M Flash | Extemal Storage: 8M Flash (DS10-IN)
16M RAM, 16M Flash (DS10-LA)
Display
3.5" 240*320 TFT Display (Optional)
Communications
4G/2G
WiFi: 802.11 b/g/n, 2.4GHz(optional)
Audio
1 Speaker 4Ω 3W, 10cm ≥110db, 1m ≥80db
Keys / Buttons
5 Keys: Power button | Function button | Vol+ | Vol- | Reset slot
Peripheral Ports
1 Type-C, 1 Nano SIM
Battery
3.7V/2600mAh
Dimensions
115mm x 65mm x 68mm
Environmental Conditions
Operating temperature: 0°C~45°C
Storage temperature: -20°C~60°C
Relative humidity: 5%~95% (Non-condensing)
Certifcations
CE, FCC, BIS, WPC
Standard Accessories
1 USB cable
Related Solutions

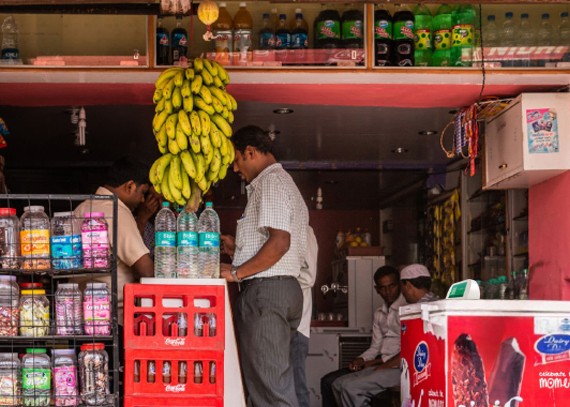

Convenience Store
In convenience stores, DS10 cloud speaker delivers clear audio notifications for transactions, while the optional display screen with a QR code enhances customer engagement and payment processing.

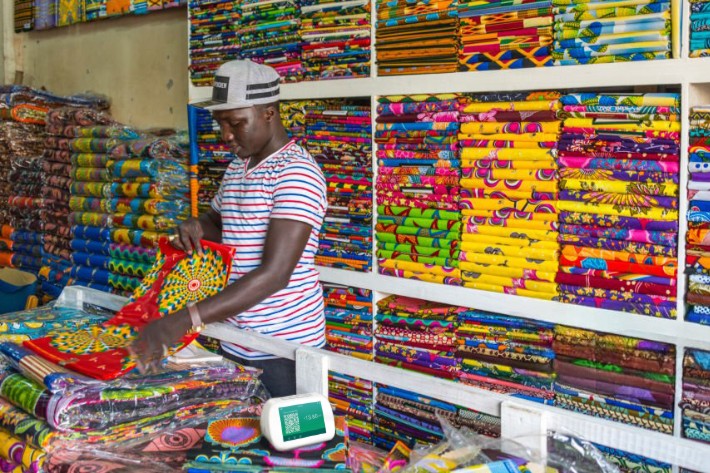

Fabric & Apparel Store
DS10 serves as a smart audio assistant in fabric and apparel stores, providing real-time transaction alerts and allowing for a QR code display to simplify payments and customer interactions.

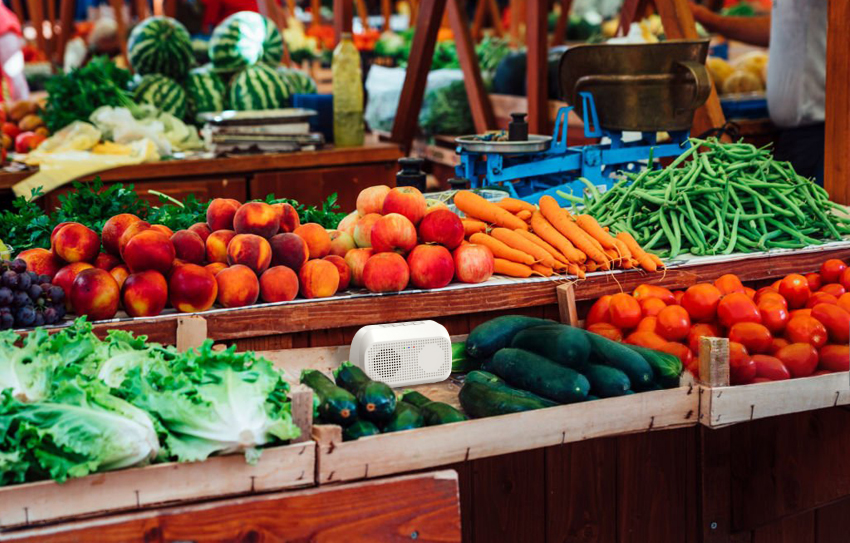

Fruit & Vegetable Stall
At fruit and vegetable stalls, DS10 offers compact audio feedback for smooth transactions, while the optional QR code display supports quick and secure mobile payments.

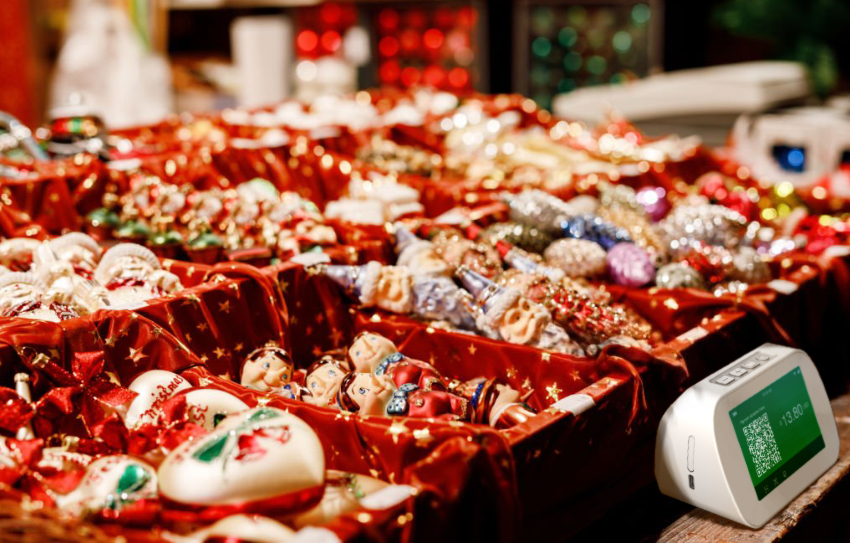

Market Stall
DS10 helps vendors at market stalls by offering audio reminders for sales, with the QR code screen providing an easy and efficient payment solution for customers.
Accessories
-
USB Cable
-
Lanyard
-
Table Stand
