Expanded Highlights

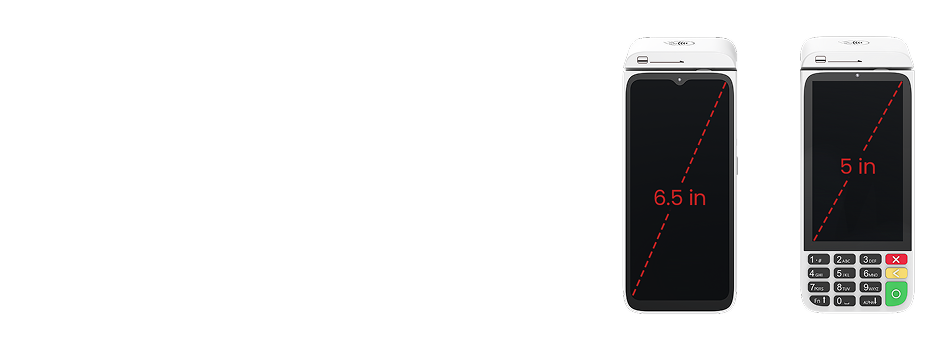

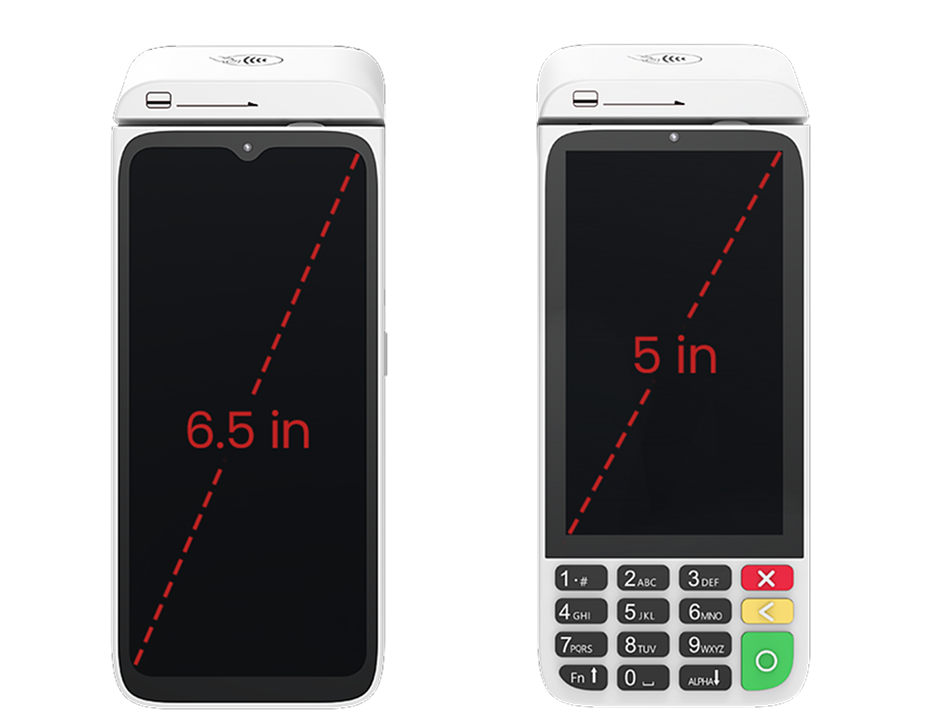

Versatile Display Choices
Choose between a standalone touchscreen, a keyboard-integrated display, or a dual-screen design to match your workflow and enhance the customer checkout experience.

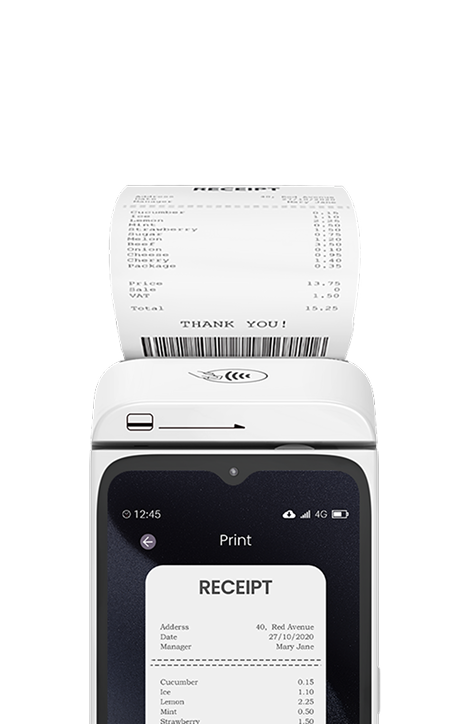

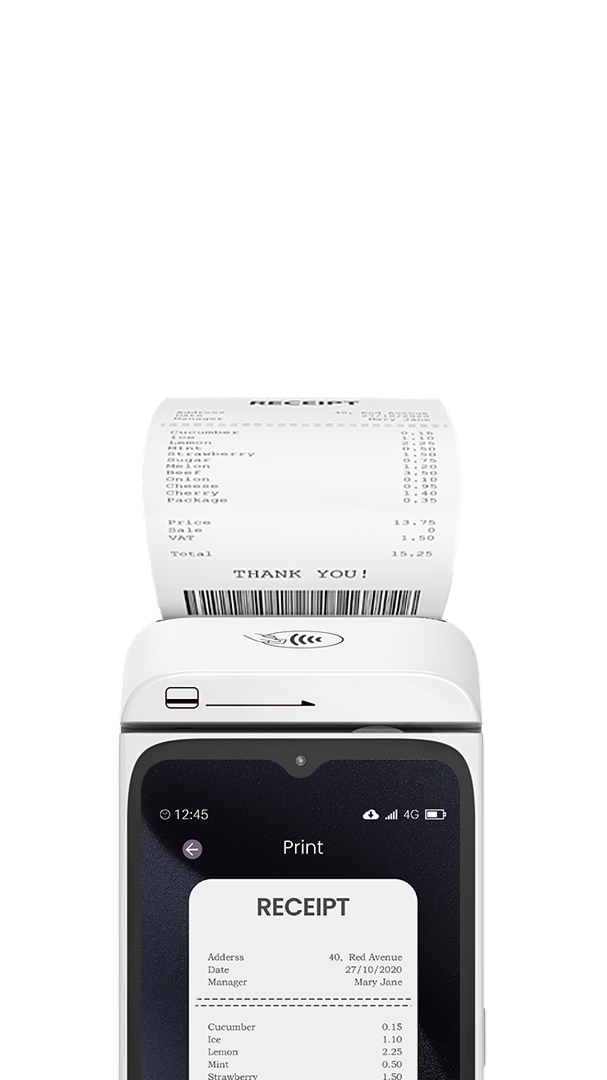

High-Speed Printing
Boost efficiency with a rapid 60mm/s thermal printer,
ensuring smooth and reliable receipt printing for every transaction.

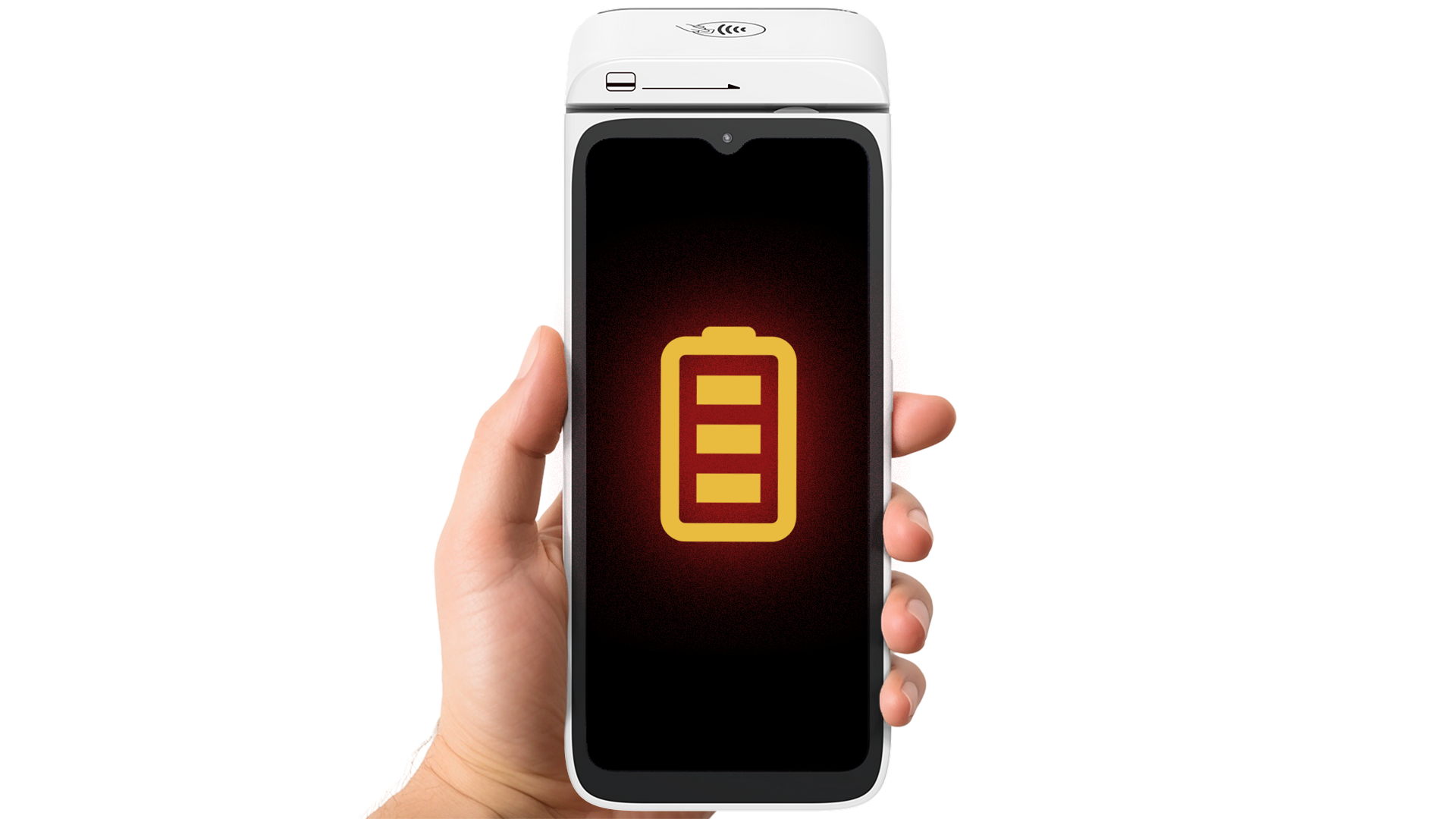

Long-Lasting Battery
Stay powered throughout the day with a robust 7.6V/2600mAh battery,
minimizing downtime and keeping your business running smoothly.
Expanded Memory Capacity
2GB RAM + 32GB FLASH
Standard
3GB RAM + 32GB FLASH
Optional
High-Speed Processing
Powerful Performance
Powerful Performance

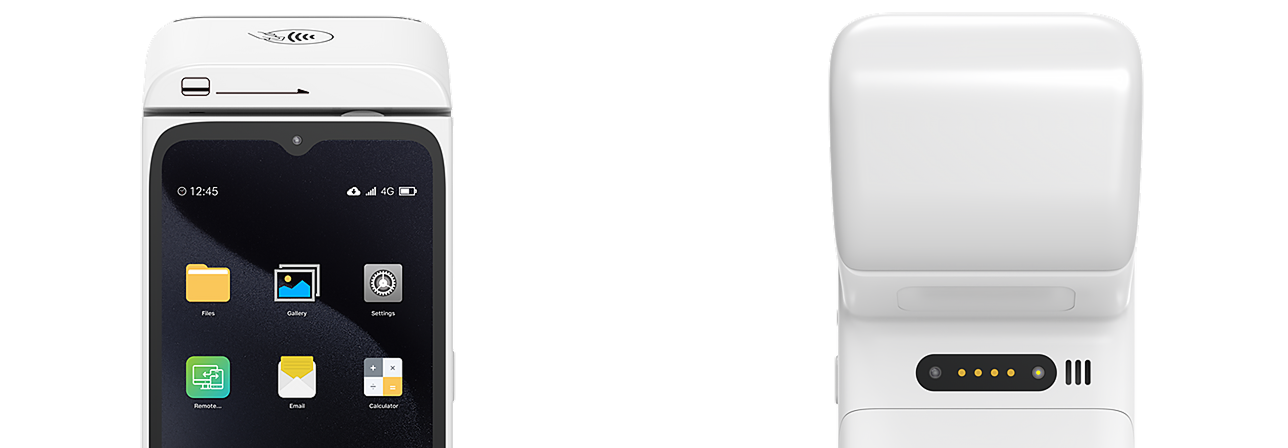

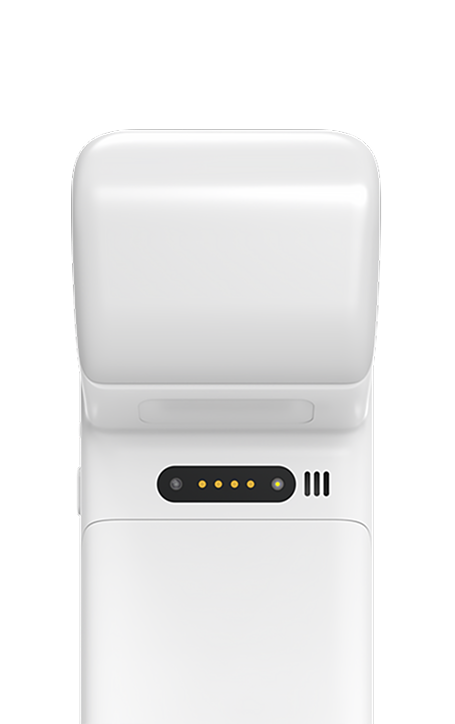

Dual Camera System
Enhance functionality with dual cameras:
5M AF rear for barcode/QRcode scanning and 0.3M FF front for identity verification—streamlining operations effortlessly.

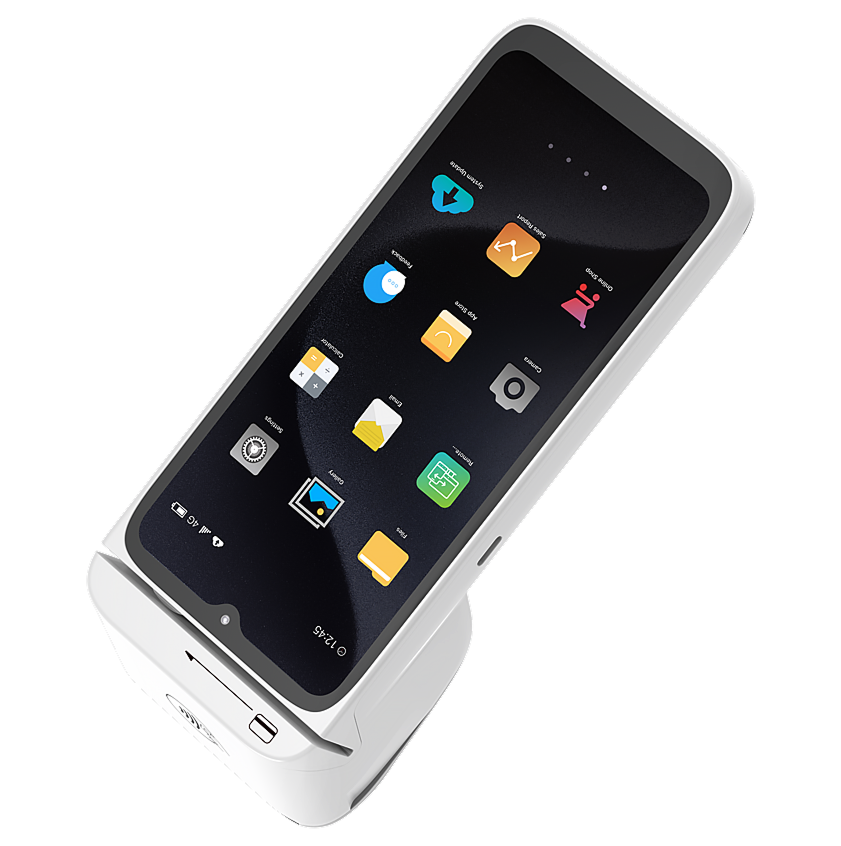

Rugged Drop Protection
Built tough to withstand drops up to 1 meter without a hitch.
Payment Methods

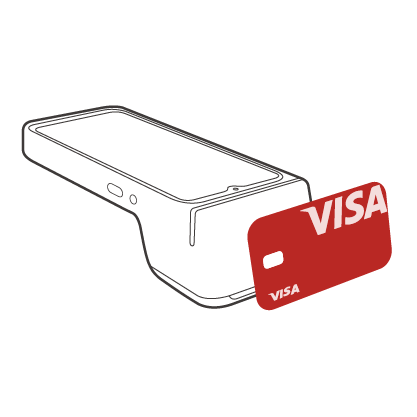

Contactless Card

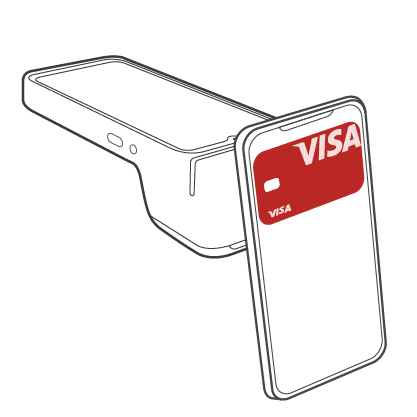

Mobile Wallet
Magnetic Stripe
EMV Chip & PIN
Barcode Scanning
QR Code Payment
Technical Specifications
OS
Android 14
Processor
Application CPU: 8*A53（4*A53@2.0GHz+4*A53@1.5GHz）
Security CPU: 32-bit ARM 192MHz
Memory
2GB RAM, 32GB Flash
3GB RAM, 32GB Flash(Optional)
Display
D80:
6.5" 720*1600 TFT IPS Display
Capacitive Touchscreen
D80K:
5" 480*854 TFT Display
Capacitive Touchscreen
D80Dual:
Main Display: 6.56" 720*1600 TFT IPS Display Capacitive Touchscreen
Customer Display: 2.45" 172*378 color Capacitive Touchscreen
Communications
4G/3G/2G
WiFi: 802.11 a/b/g/n/ac, 2.4GHz&5G, Supports AP
Bluetooth® 5.0
Satellite Positioning
GPS | A-GPS | GALILEO | BEIDOU
Contactless Card Reader
EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare
EMV Card Reader
EMV L1/L2, conforming to ISO 7816, compliant Class A, B, C
Magnetic Card Reader
Triple track, conforming to ISO 7810/7811/7813, Bi-directional swiping
Camera
Rear Camera: 5M AF
Front Camera: 0.3M FF
Audio
Speaker
Keys / Buttons
D80 & D80Dual 2 Keys:
1 Power ON/OFF | 1 Volume
D80K 17 Keys:
0~9 | 5 Function Keys | 1 Power ON / OFF | 1 Volume
Printer
Thermal printer
Paper Roll Width: 58mm
Paper Roll Diameter: 40mm

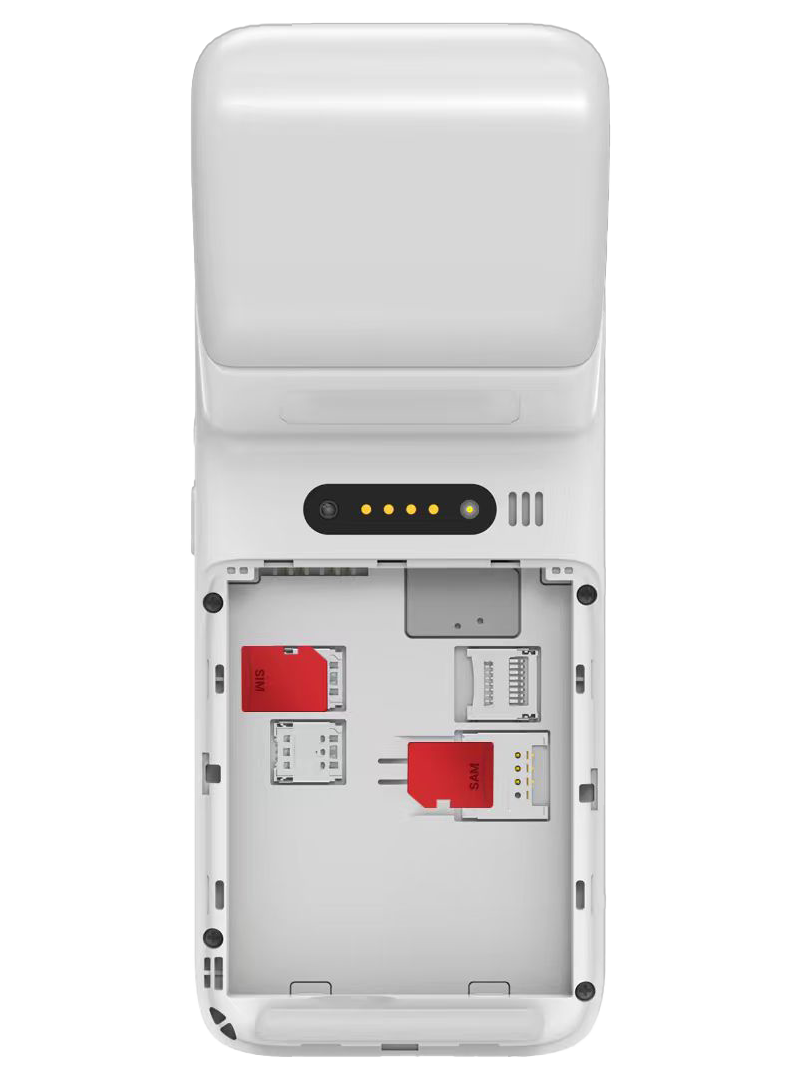

Peripheral Ports
1 Type-C (OTG), 4 PIN POGO PIN,
2 Nano SIM(option 1 esim) + 1 Mini SAM,
1 Micro SD Card Slot, supports up to 256 GB
D80 Dual supports fiscal control module
Battery
7.6V/2600mAh
Adapter/Power Supply
Input: 100-240V AC, 50Hz/60Hz
Output: 5.0V DC, 2.0A
Dimensions
195mm x 78.5mm x 51.8mm
448.5g (Including battery & thermal paper)
Environmental Conditions
Operating temperature: 0°C~45°C
Storage temperature: -20°C~60°C
Relative humidity:
5%~95%
(Non-condensing)
Certifcations
PCI PTS 6.x with SRED,
EMV L1&L2, Contactless L1,
Visa Paywave,
MasterCard Paypass,
Amex Expresspay,
Discover D-PAS,
PCI PIN Security,
MasterCard TQM
CE, FCC, RoHS, ABCES
Standard Accessories
1 Power adapter, 1 USB cable
Related Solutions
Bookstore
In bookstores, the D80 simplifies inventory tracking, supports ISBN scanning, and enables fast checkout with integrated payments. Its high-resolution display ensures easy readability, while robust performance handles peak shopping hours effortlessly.
Veterinary Clinic
The D80 streamlines veterinary vlinic operations with quick product scanning, membership management, and vaccination record tracking. Its durable build withstands busy environments, keeping transactions smooth and customers satisfied.
Flower Shop
At flower shops, the D80 accelerates order processing, bouquet customization, and delivery management. Its sleek design and long battery life ensure uninterrupted service during holidays and busy events.
Café
In cafés, the D80 speeds up mobile orders, split bills, and loyalty program redemptions. With fast connectivity and spill-resistant features, it keeps service efficient even during the morning rush.
Accessories
-
Power Adapter
-
USB Cable
-
Thermal Paper Roll
-
Stickers
-
Lanyard
-
Table Stand
