Expanded Highlights
Enhanced Anti-Drop Protection
Enhanced durability for withstanding drops up to 1 meter.
Technical Specifications
OS
Linux
Processor
ARM Cortex-A7 Dual Core 1.0 GHz
Memory
128MB RAM, 128M Flash

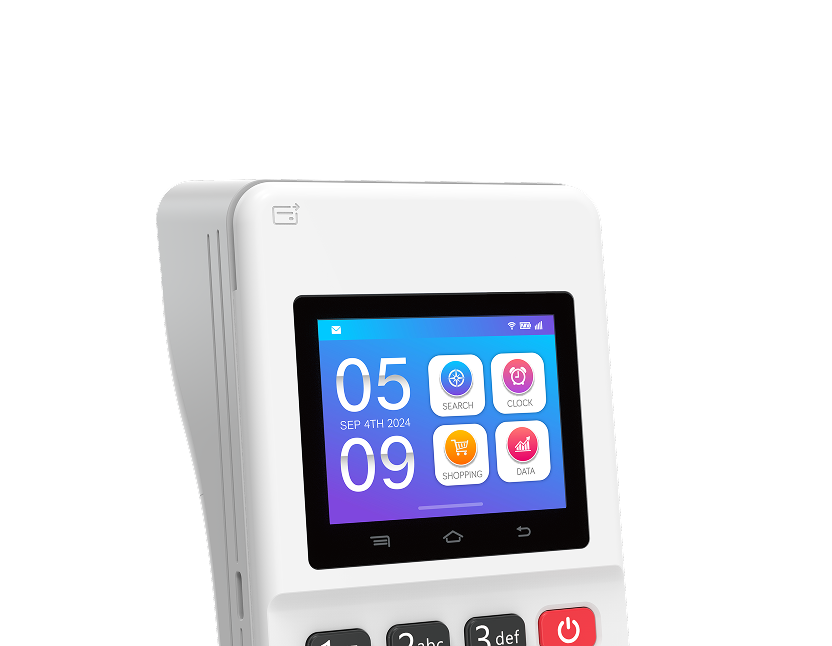

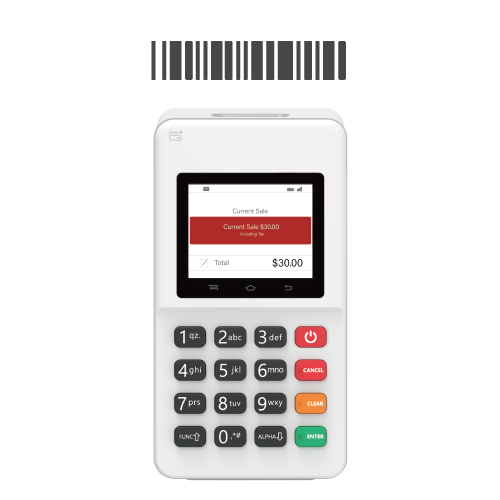

Display
2.4" 320 x 240 TFT Display
Capacitive Touchscreen
Communications
4G/2G
WiFi: 802.11 b/g/n, 2.4GHz

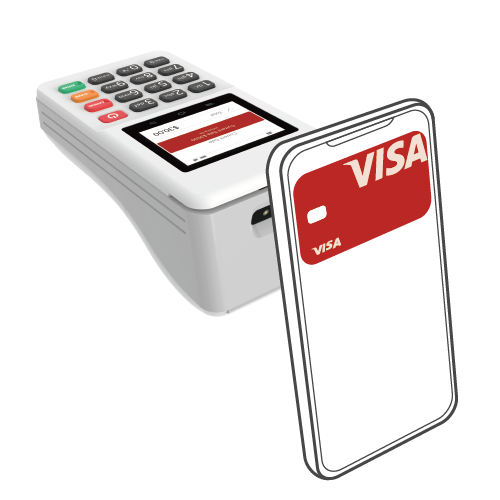

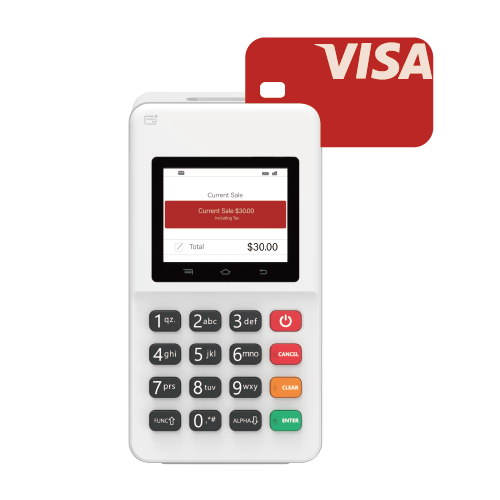

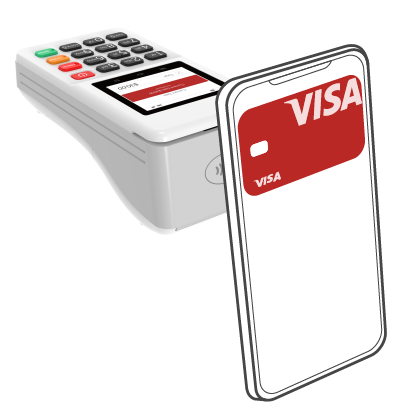

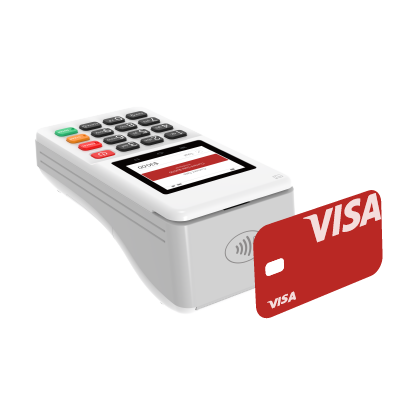

Contactless Card Reader
EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare

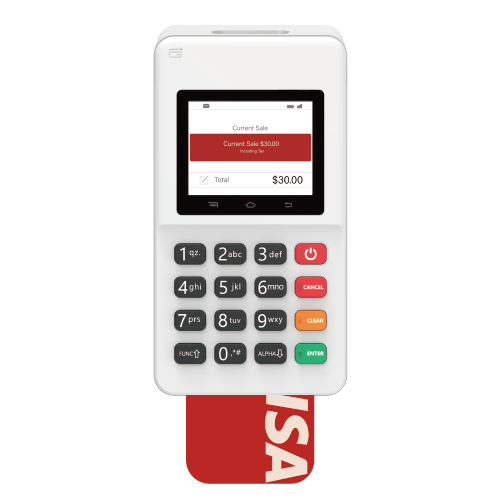

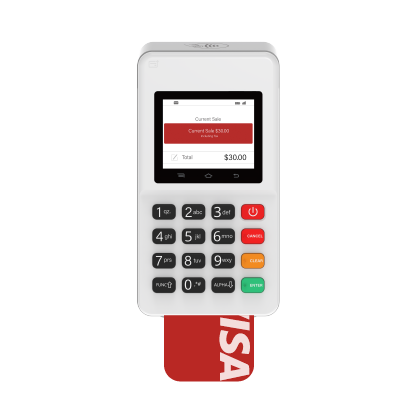

EMV Card Reader
EMV L1/L2, conforming to ISO 7816, compliant Class A, B, C

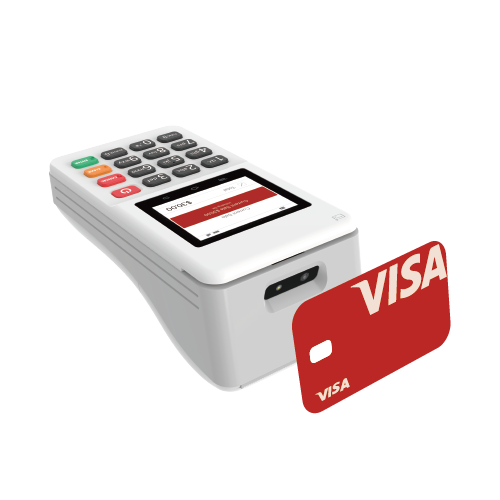

Magnetic Card Reader
Triple track, conforming to ISO 7810/7811/7813, Bi-directional swiping
Audio
Built-in buzzer

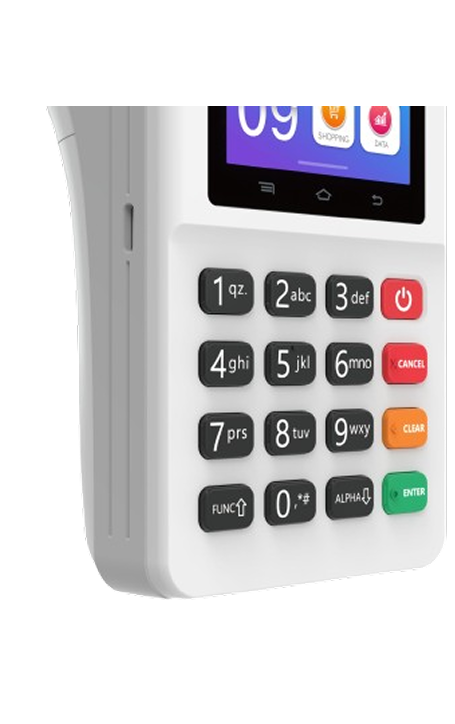

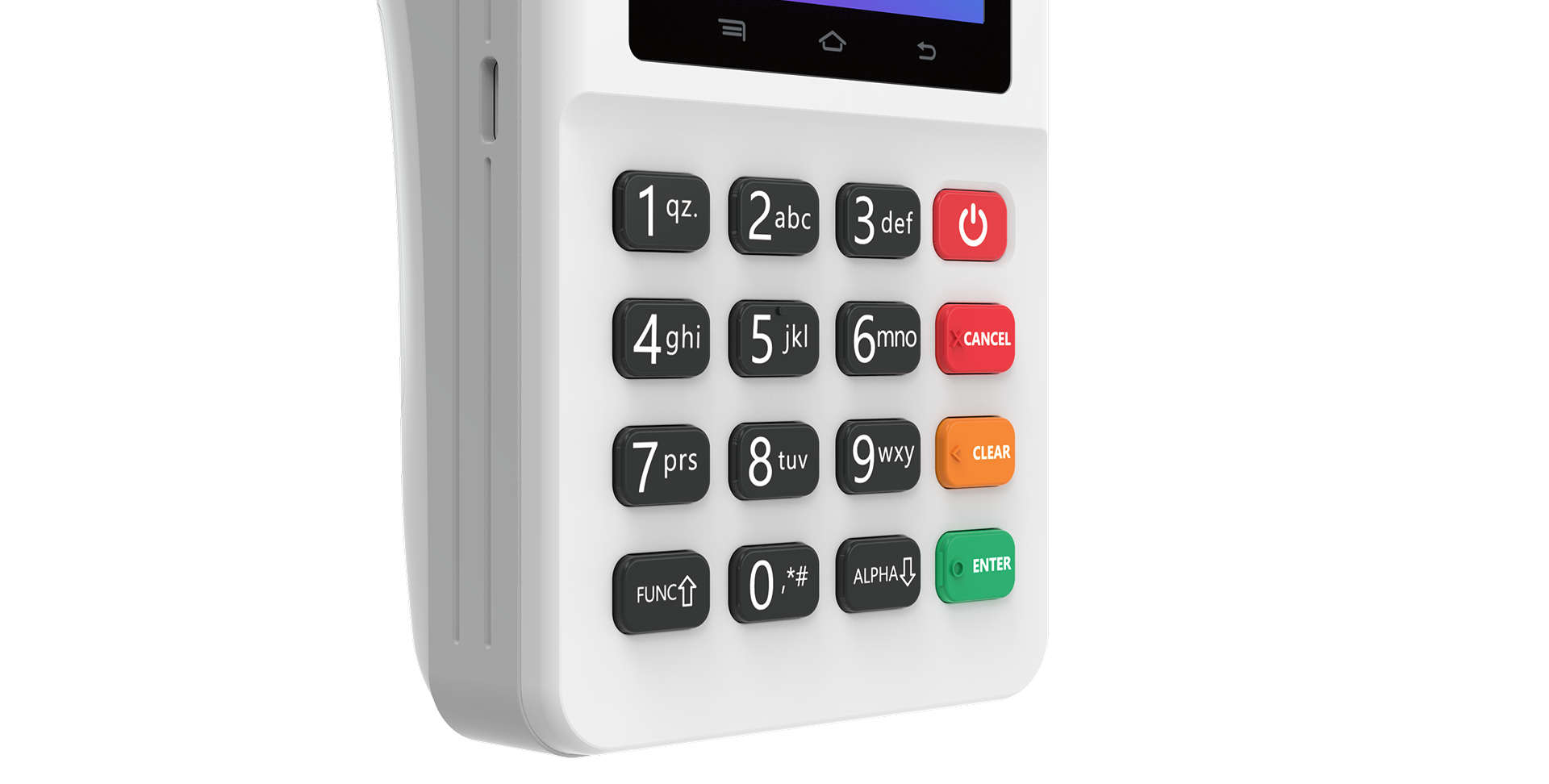

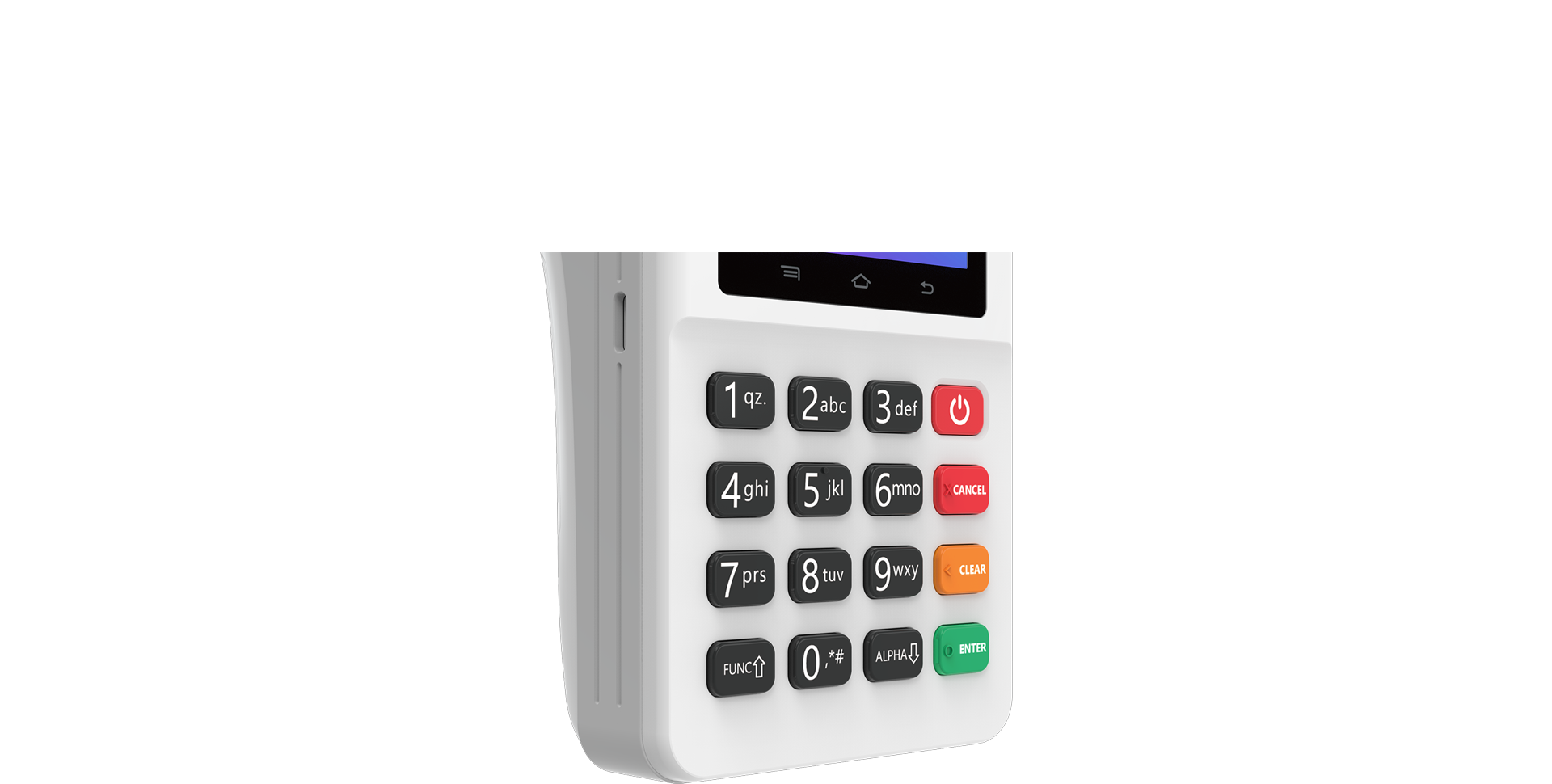

Keys / Buttons
16 Keys: 0~9 | 5 Function Keys | 1 Power ON / OFF

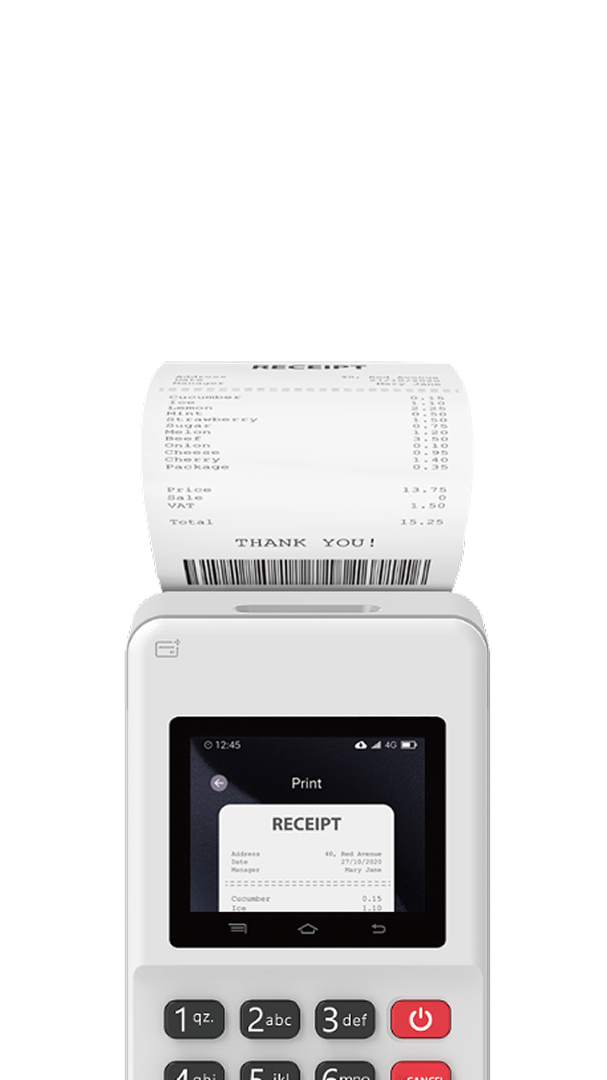

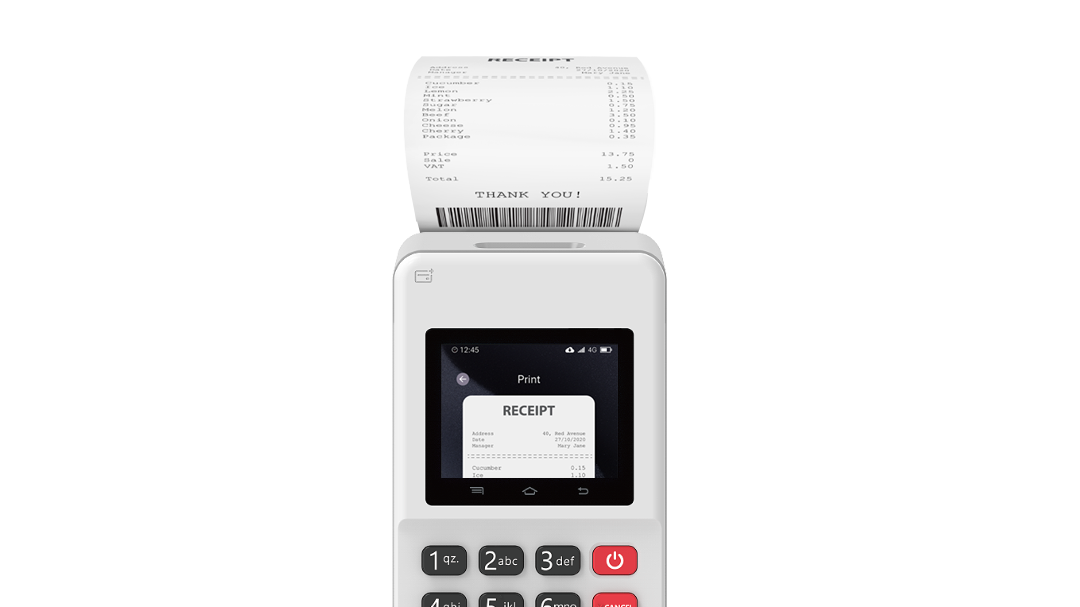

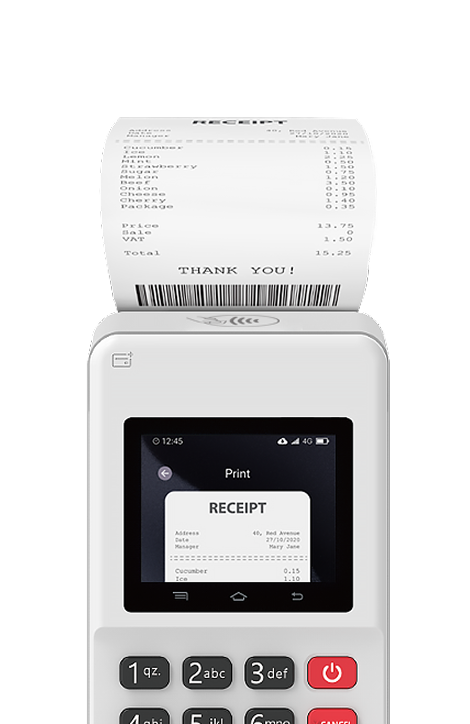

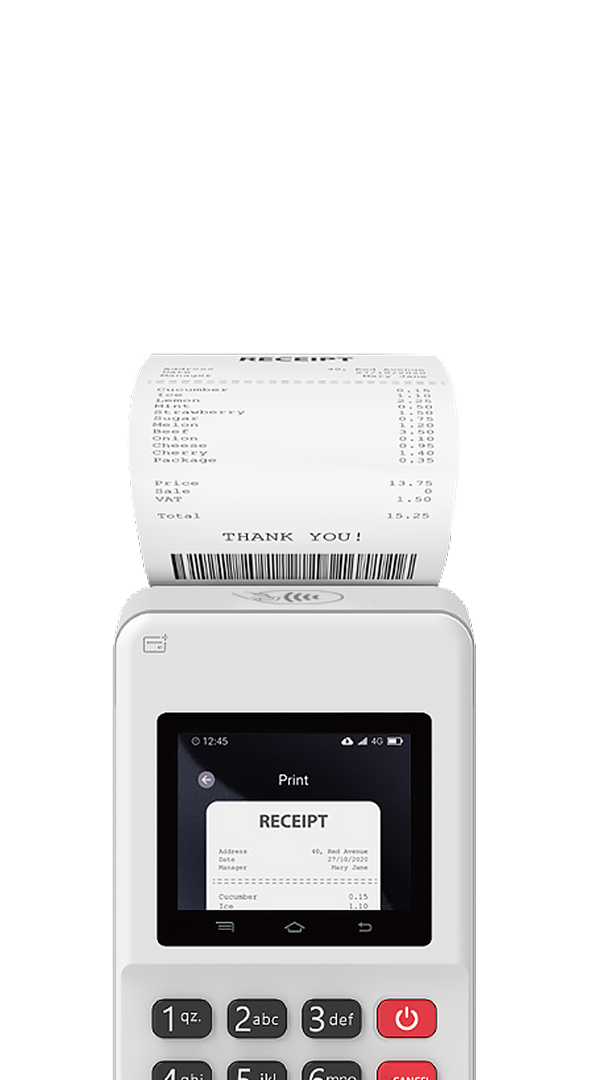

Printer
High speed thermal printer
Paper Roll Width: 58mm
Paper Roll Diameter: 40mm
Peripheral Ports
Type-C USB

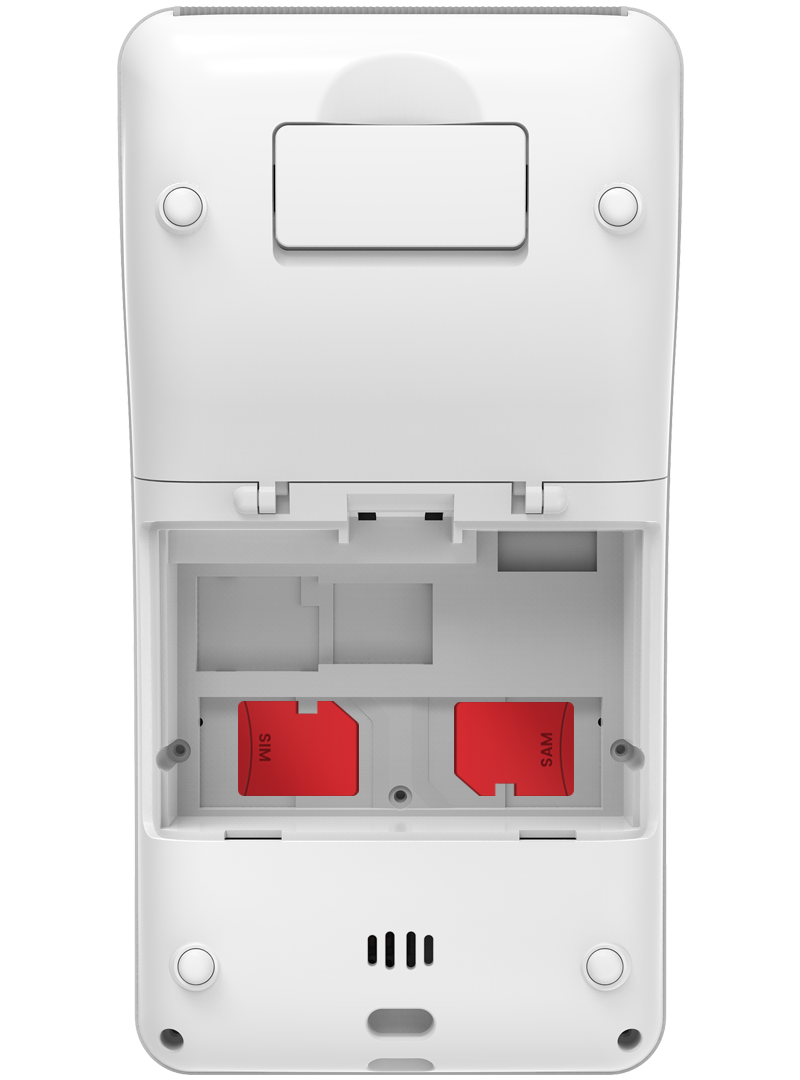

1 Mini SIM + 1 Mini SAM
Battery
3.7V/4000mAh
Adapter/Power Supply
Input: 100-240V AC, 50Hz/60Hz
Output: 5.0V DC, 2.0A
Dimensions
153mm x 78mm x 61.6mm, 348g (Including Battery)
Environmental Conditions
Operating temperature: 0°C~45°C
Storage temperature: -20°C~60°C
Relative humidity: 5%~95% (Non-condensing)
Certifcations
PCI PTS 6.x with SRED
EMV L1&L2, Contactless L1
Visa Paywave, MasterCard Paypass, PURE
Amex Expresspay, Discover D-PAS
PCI PIN Security, MasterCard TQM
CE, FCC, RoHS
Standard Accessories
1 Power adapter, 1 USB cable
Accessories
-
Power Adapter
-
USB Cable
-
Thermal Paper Roll
-
Stickers
-
Rubber Case
-
Lanyard
-
Table Stand
